Day and secure modes
Operating mode can be selected around circulation and security needs.
ABLOY · EL SERIES · DIN

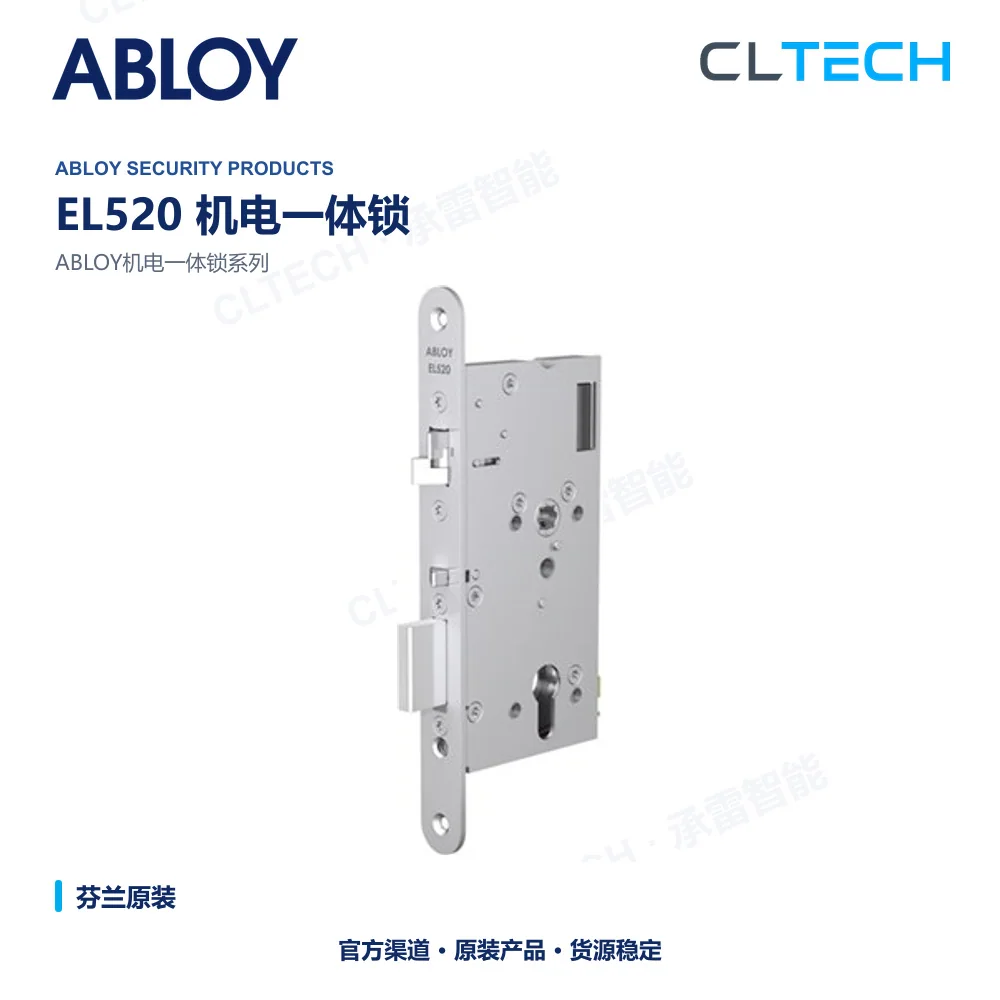

ABLOY EL520
A DIN-standard single-point motor lock for high-traffic solid doors. It supports day and secure modes, automatically deadlocks when the door closes, and can be integrated with door automation when the complete system is verified.
Door typeSolid doors
DriveMotorised
TrafficHigh
Updated: 2026-09-04 · Confirm all data against the complete order code
What the EL520 is designed to do
EL520 is intended for high-traffic push-and-pull doors. Day mode supports daily circulation, while secure mode automatically extends the deadbolt after the door closes.
Automatic deadlocking
The deadbolt is automatically thrown after the door closes in the relevant mode.
Automation capable
Door automation is possible after checking interfaces, timing, power and required accessories.
Applications and selection boundaries
Confirm the door standard and operating logic before treating a similar model as a substitute.
Typical applications
- High-traffic solid wooden or metal doors
- Commercial and public-building entrances
- Doors requiring day and secure operating modes
- Verified automatic-door systems
Confirm or exclude
- Use corresponding profile-door models for narrow frames
- Verify automation interface and timing
- Confirm escape and fire requirements as a complete system
- Do not infer wiring or current from the model alone
Product information checked for selection
Configuration-dependent values must be reconfirmed against the complete order code and current technical documentation.
Product typeMotor lock for push-and-pull doors
StandardDIN
Door typeSolid wooden or metal doors
Traffic levelHigh-traffic applications
LockingSingle point; automatic deadlocking after closing
HandingNon-handed; verify the actual opening direction
LatchDouble action
Deadbolt20 mm
Voltage12–24 VDC or 12–18 VAC; verify current by complete order code
Mechanical openingCylinder opening available
Door automationPossible after interface, timing and accessory review
Related models
Similar-looking models are not automatic substitutes; door preparation, drive type and handle logic may differ.
EL520
High-traffic motor lock for solid doors; automation is possible after system review.
Current modelEL420
Corresponding motor-lock direction for profile doors with different door preparation.
View EL420 →EL560
Handle-controlled lock for medium traffic; not suitable for door automation.
View EL560 →Selection checklist
Provide door preparation, handing, traffic level, operating logic, power, interfaces, hardware, compliance requirements, quantity, destination and schedule.
Frequently asked questions
Common questions raised during preliminary selection and replacement discussions.
What door type is ABLOY EL520 intended for?
EL520 is intended for high-traffic push-and-pull doors. Day mode supports daily circulation, while secure mode automatically extends the deadbolt after the door closes.
How is ABLOY EL520 controlled?
Operating mode can be selected around circulation and security needs.
What happens to EL520 during a power failure?
The fail state depends on the complete order configuration and control design. Confirm fail-safe or fail-secure operation before purchase.
Can EL520 be used with door automation?
It can generally be integrated, but interfaces, timing, power, feedback and required accessories must be checked as a complete system.
Can EL520 be used on fire or escape doors?
Suitability must be verified against the complete lock, hardware, door certification and local compliance requirements.
What information is needed for a EL520 enquiry?
Provide door standard and preparation, handing, traffic, operating logic, power, interfaces, hardware, compliance needs, quantity, destination and schedule.
Use the complete order code, current technical documents and written project confirmation for final selection. This page does not replace engineering review or certification documents.
